Kirin

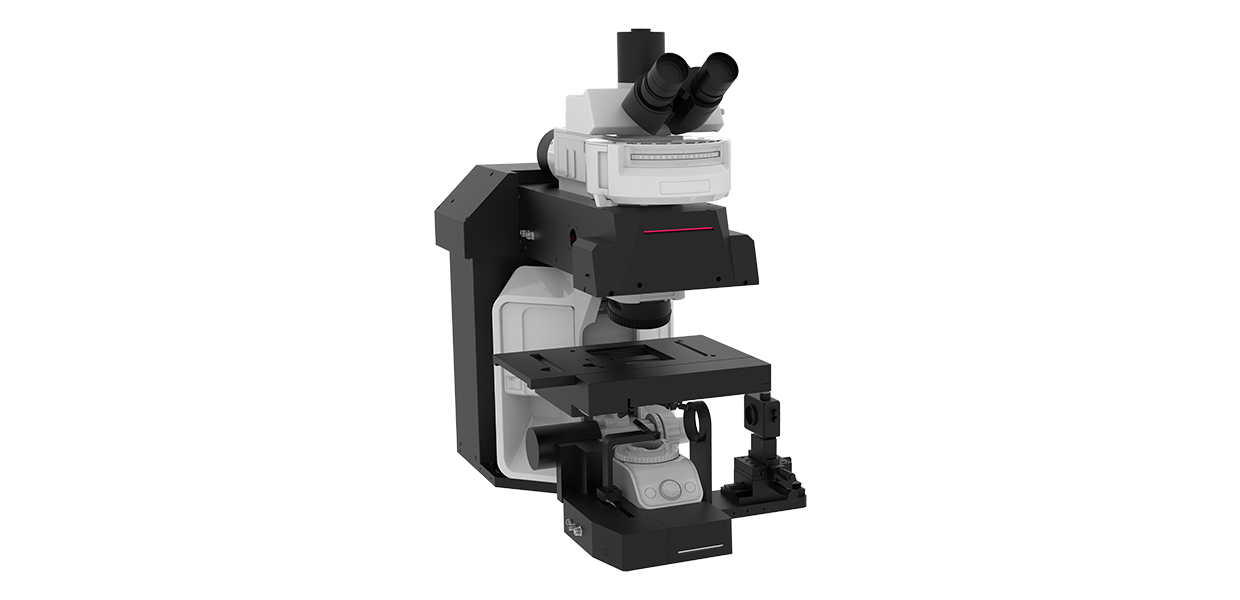

The Kirin series laser scanning microscopy system is built on a standard upright microscope frame and paired with a dedicated optical scanning and transmission stack, including a customized XY dual-axis galvanometer, optical mirrors, and a 4f lens group. Together, these components enable large- field laser scanning microscopy and efficient signal transmission. With different light-source inputs, Kirin helps users quickly configure a laser scanning microscopy platform for a range of experimental needs.
Principle of Operation
Kirin supports multiple optional modules, including fluorescence imaging, motorized lower- path switching, and signal acquisition and analysis modules. Combined with dedicated control and analysis software, it can be used for user-configured laser microscopy workflows, galvanometer scanning microscopy training, and fast switching among laser inputs across a range of experimental scenarios.
Core Advantages and Customer Value
-
Modular DesignThe platform can be configured for fluorescence, two-photon, second-harmonic, Raman, and related imaging workflows while adapting to different microscope formats.
-
Extra-Large Field of ViewWith a 40X objective, the system supports a 525 um x 525 um laser-scanning field of view to cover larger sample-observation needs.
-
4F Laser Scanning Optical PathA 4f lens group enables loss-minimized spot scaling, low aberration, high stability, and precise, efficient laser transmission.
